The steel rails, also known as rails and railway tracks, are the main components of railway rails. Its function is to guide the wheels of the locomotive, bear great pressure on the wheels, and keep the railway transportation stable. On the electrified railway or automatic occlusion section, the steel rail can also be used as the rail circuit.
QU70 crane rails are frequently used in a variety of industrial crane systems, including container cranes, gantry cranes and bridge cranes, where their strength and stability make them suitable for supporting heavy loads and facilitating smooth crane operation.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Material: U71MN
Weight: 52.8kg/m
Length: 12M
Execution standard: YB/T5055-2014
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| QU70 | 52.8 | U71Mn | 12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 70 | 120 | 120 | 28 |

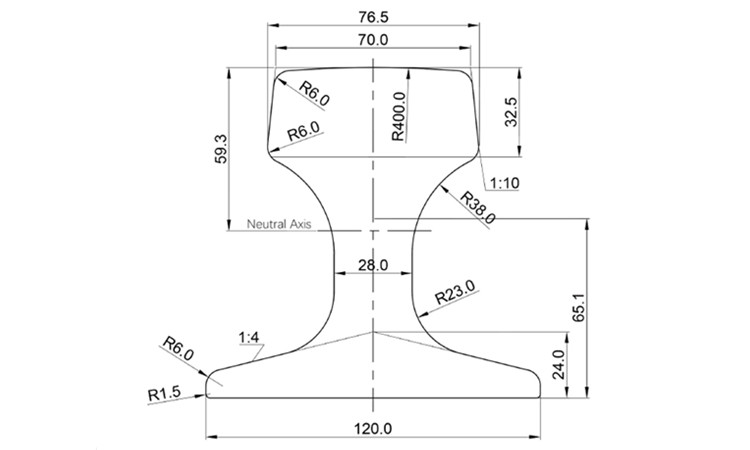

Drawing:
Contact us
We supply and export QU70 Rail at high quality and competitive price. The QU70 rail is a type in the crane rail. If you need any QU70 rail, please contact us.
