54E1 (UIC54) rail model manufactured according to European standard EN 13674-1. It is used in railway construction. This is a T-rail (flat bottom rail) with a mass of 54.77 kg per meter. The standard rail uses 54E1/UIC54 rail for medium and heavy load traffic.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Size: 54E1 UIC54 Rail
Standard: EN 13674-4
Length: 5m~25m or other lengths according to customer requirements
Material: R200, R260, R260MN, R350HT
| Size |
Rail height(mm)
A |
Bottom Width(mm)
B |
Head Width(mm)
C |
Web Thickness(mm)
t |
Weight(kg/m) |
| 54E1(UIC54) | 159.00 | 140.00 | 70.00 | 16.00 | 54.77 |

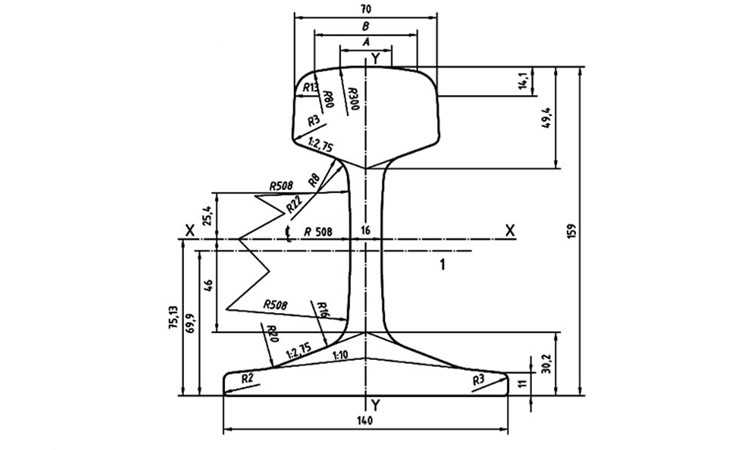

Drawing:
Contact us
Please contact us for more information and quotations.
