Rail profile 60E1 (UIC60) manufactured according to European standard EN 13674-1 with a mass of 60.21 kg per meter.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Dimensions:
| Type of rail | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | D | E | cm² | kg/m | ||
| 60E1 (UIC60) | EN 13674 - 1 | 172,00 | 150,00 | 72,00 | 51,00 | 16,50 | 76,70 | 60,21 |

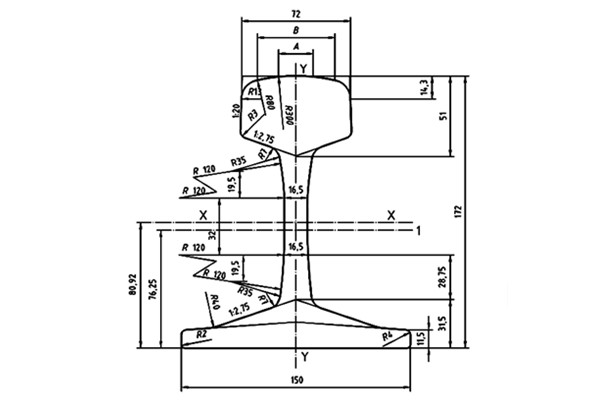

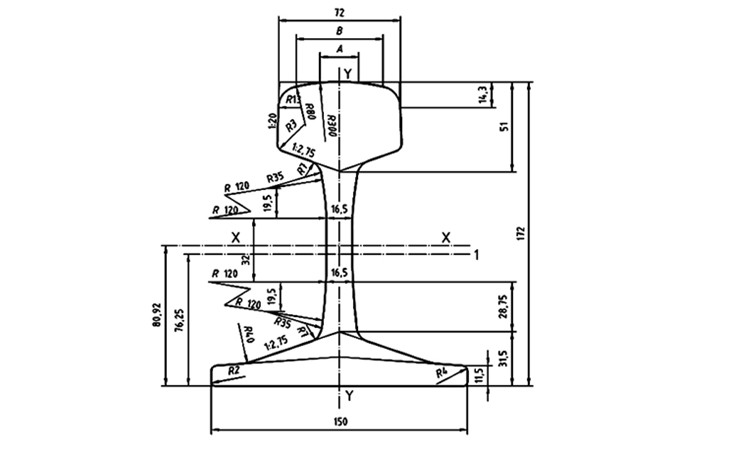

Drawing:
Contact us
Please contact us for more information and quotations.
