UIC 60 rails can be used for laying main railway lines, seamless railway lines, mines, shaft rails, crane rails, ports, light car transport rails on construction sites, etc.
The production and acceptance of UIC 60 rails is carried out according to the European standard EN 13674-1.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Head width: 72mm
Height: 172mm
Bottom width: 150mm
Web thickness: 16.5mm
Nominal weight: 60.21kg/m
Material: 900A/1100
Length: 12-25m
Chemical composition
| ％ | C | Si | Mn | P | S |
| output | 0.72-0.74 | 0.23-0.27 | 1.10-1.16 | 0.014-0.023 | 0.005-0.011 |
| average | 0.73 | 0.25 | 1.14 | 0.018 | 0.006 |
Mechanical behavior
| UIC60 | Tensile strength(Mpa) | Elongation (%) |
| Output | 920-980 | 12.0-15.0 |
| Average | 950 | 13.8 |
Specification
| Size | Dimension | Weight (kg/m) | Material | Length (m) | |||
| Head (mm) | Height (mm) | Base | Web | ||||
| UIC60 | 72 | 172 | 150 | 16.5 | 60.21 | 900A/1100 | 12-25 |

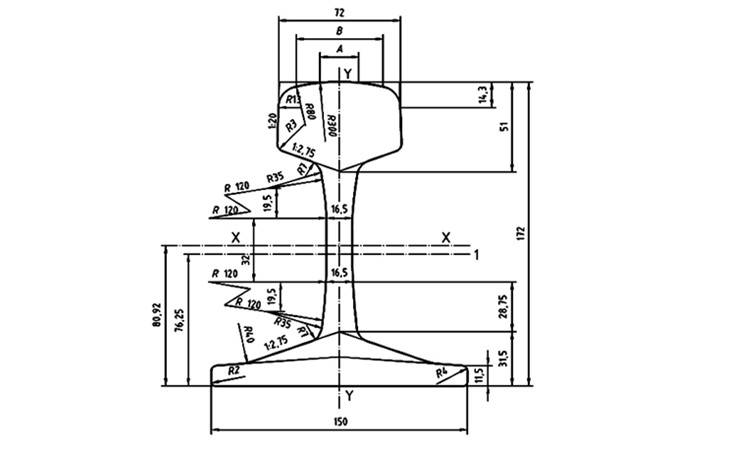

Drawing:
Contact us
Please contact us for more information and quotations.
