EN13674-1 standard UIC60 metal rails are used on national railway lines or metros. The hardness is R260/R320Cr/R350HT. The length can be 12-50 meters. Kingrail Parts can produce UIC 60 rail. The minimum order quantity should be greater than 200 tons.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
| Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
| 60E1(UIC60) | 172.00 | 150.00 | 72.00 | 16.50 | 60.21 |

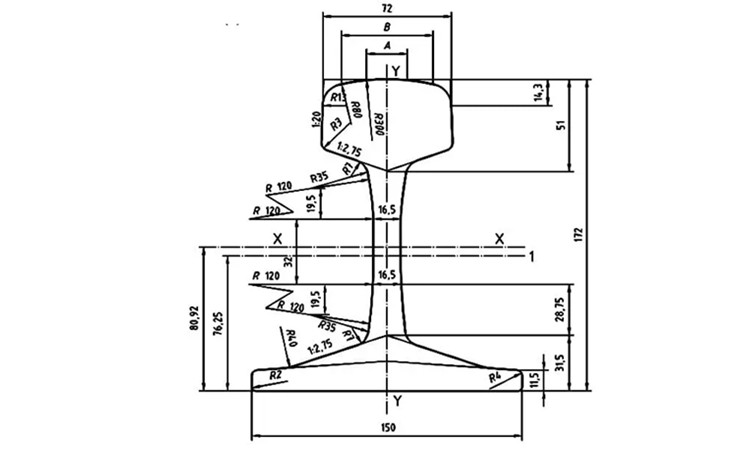

Drawing:
