Kingrail Parts' 22kg rails are manufactured to Japanese Industrial Standard E1103-M and have a length of 12.19 metres.
The 22kg rail is the guide load-bearing load and is used in conjunction with the track wheels to support the weight. The 22kg light rail is mainly used for the laying of temporary transportation lines and light locomotive lines in forest areas, mining areas, factories, and construction sites.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| 22kg | 22.3 | Q235/55Q | 6-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 50.8 | 93.66 | 93.66 | 10.72 |

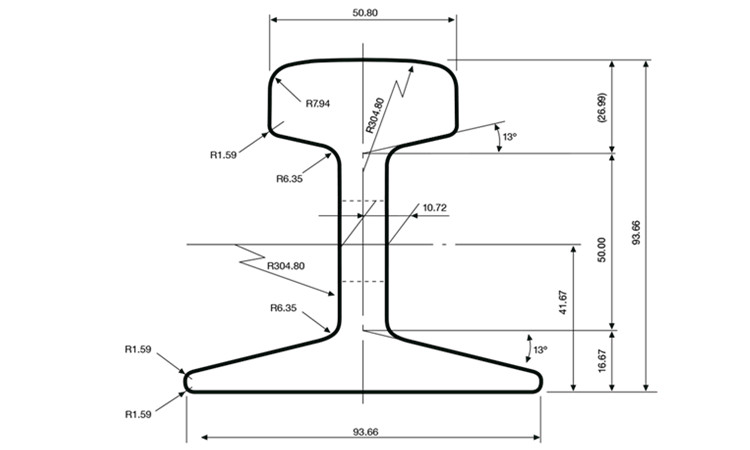

Drawing
Contact us
Please contact us for more information and quotes.
