JIS 22kg railway light rail is used in mines to transport ore. Kingrail Parts can produce 22kg rails. The materials are Q235 and 55Q, and the lengths are 6m, 8m and 10m.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification
Material: Q235/55Q
Weight: 22.3KG/M
Length: 6-12m
Standard: GB11264-89
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| 22kg | 22.3 | Q235/55Q | 6-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 50.8 | 93.66 | 93.66 | 10.72 |

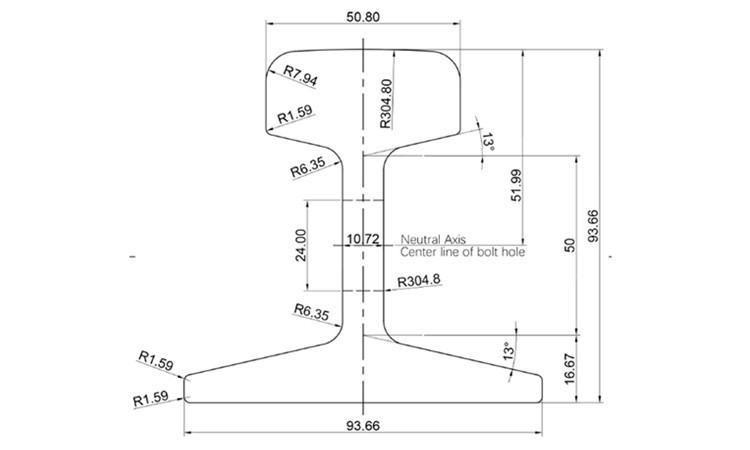

Drawing
Contact us
Please contact us for more information and quotes.
