U71Mn QU120 crane rail is mainly used in the crane industry. QU120 crane rail can also be used for large-scale projects, dock hoisting containers, etc. It is a special rail for gantry cranes.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
As a professional rail manufacturer in China, Kingrail Parts can provide high-quality, low-price QU120 rails.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications
Size: QU120 crane rail
Material: U71Mn
Standard: YB/T5055-2014
Length: 12m or other lengths as required by customers
|
type |
weight (kg/m) |
material |
length (m) |
|
QU120 |
118.10 |
U71Mn |
12 |
|
rail height (mm) |
bottom width (mm) |
head width (mm) |
web thickness (mm) |
|
170 |
170 |
120（129） |
44 |

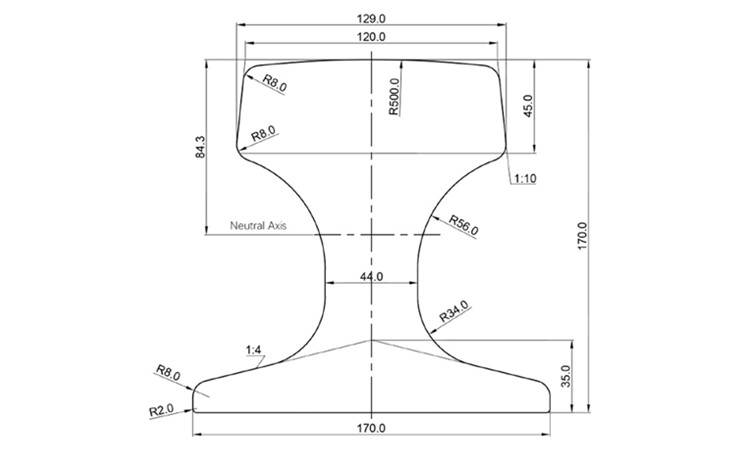

Drawings
Get more help
Please contact us for more information and quotes.
