Kingrail Parts' light rail ASCE 80 is manufactured according to the American ASCE standard, with a mass of 39,68 kg per meter and 80 pounds per yard.
ASCE 80 rails are mainly used as crane rails, underground mining rails, factories, ports, railways, etc.
ASCE rail is a type of rail defined by the American Society of Civil Engineering and used for railroad tracks in North America. It is primarily used for light transportation or light rail, such as temporary traction tracks in forested areas, mines, and construction sites. The dimensions of ASCE rails are usually expressed in weight per yard.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
We can provide high quality ASCE 80 rails, if you have any questions about ASCE 80 rails, welcome to contact us.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications
Dimensions: ASCE 80 rails
Material: Q235B, 55Q, U71Mn
Standard: ASTM A1
Length: 12m~25m or other lengths as required by customers
Dimensions
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
ASCE80 |
127.00 |
127.00 |
63.50 |
13.89 |
39.82 |

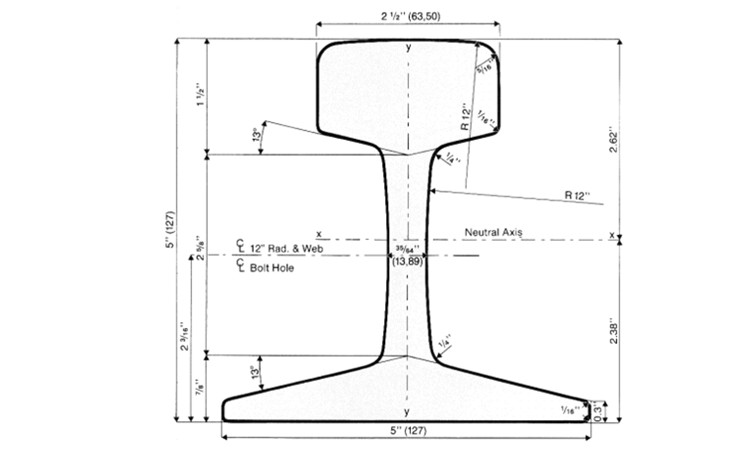

Drawings
Get more help
Please contact us for more information and quotes.
