A55 crane rails are usually used in tram rails, crane rails, mining rails and many other applications.
Crane rail A55 is manufactured according to European standard DIN 536 P1:1991 and has a mass of 31,80 kg/m.
The A55 crane rail is a reliable and versatile solution for heavy industrial applications. Its high load-bearing capacity, excellent wear resistance, easy installation and compliance with safety standards make it the first choice for industries that require efficient and durable crane systems.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
We can provide high quality A55 rails, if you have any questions about A55 rails, welcome to contact us.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications
|
A55 Rail Parameters |
|||
|
Rail Type |
Weight(Kg/m) |
Material |
Length(m) |
|
A55 |
31.8 |
700/900A/1100 |
10-12 |
|
Head Width(mm) |
Bottom Width(mm) |
Rail Height(mm) |
Web Thickness |
|
55 |
150 |
65 |
31 |

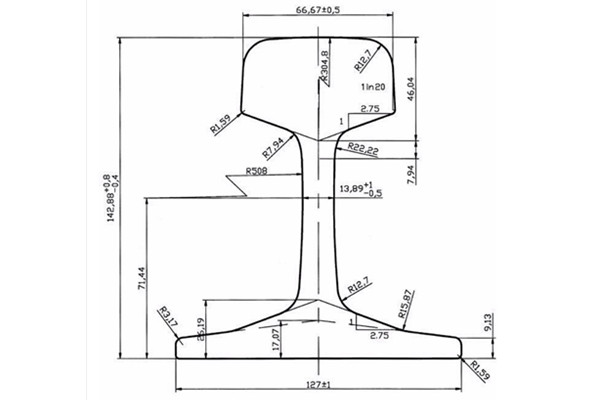

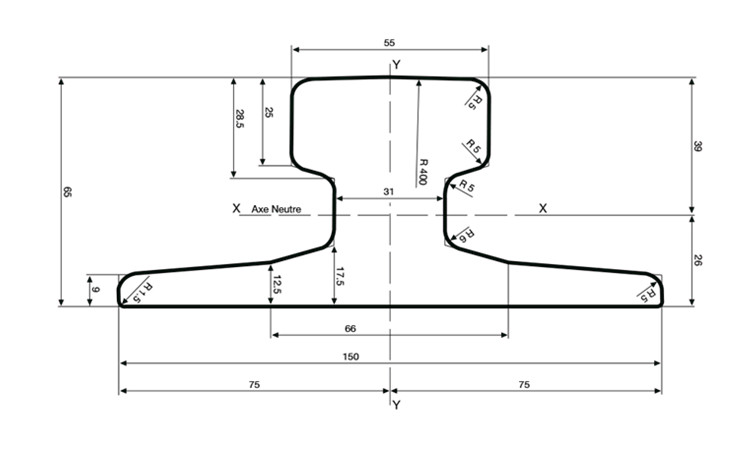

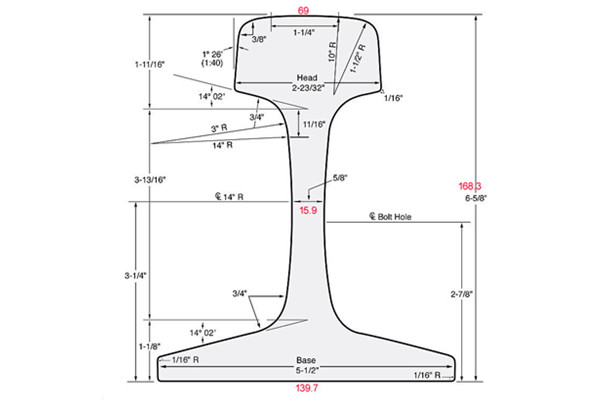

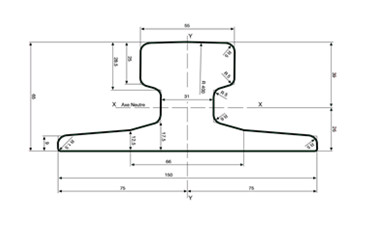

Drawings
Get more help
Please contact us for more information and quotes.
