BS90A rail is used for subway lines or mine railway lines. Most British countries and European countries use this type of rail. The British standard is BS11-1985, the European standard is EN13674-4, and the type name is EN 45E1. They are the same type of rail.
BS90A rails weigh 90 pounds per yard (about 45 kilograms per meter) and use standard steel sections. They are suitable for mainline railways, industrial railways and heavy-duty freight.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
We can provide high quality BS90A rails, if you have any questions about BS90A rails, welcome to contact us.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
BS90A |
142.88 |
127.00 |
66.67 |
13.89 |
45.099 |

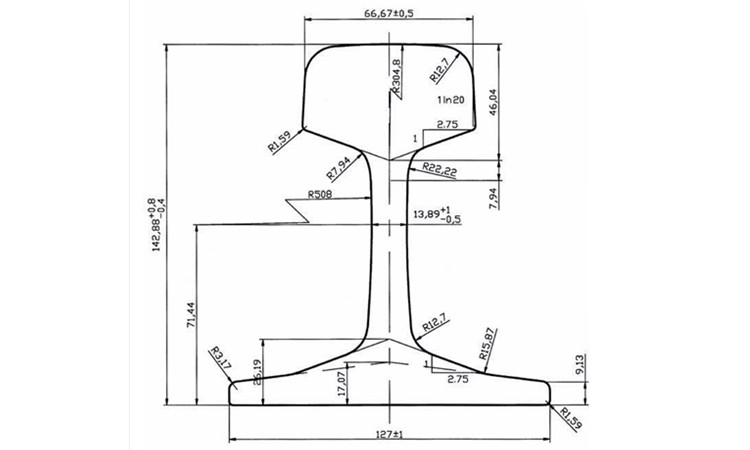

Drawings
