CR100 Rail is commonly used in applications such as stacker/reclaimers, steel mill cranes, port and terminal cranes, crane rails and mining rails.
CR 100 is the standard crane track mainly used in the Japanese market.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
We can provide high quality CR100 rails, if you have any questions about CR100 rails, welcome to contact us.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specifications
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
CR100 |
150.00 |
155.00 |
120.00 |
39.00 |
100.20 |

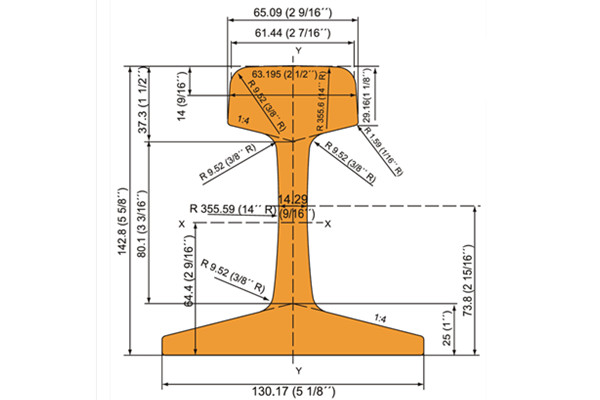

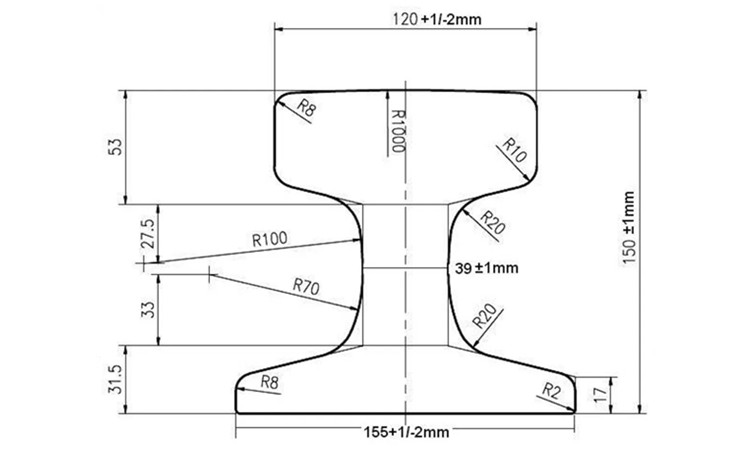

Drawings
Contact Us
Please contact us for more information and quotes.
