P43 rail is a heavy-duty standard rail in China, which is often used in the railway industry or port crane rails because of its strong load-bearing capacity, good pressure-bearing performance, and is not easy to twist or deform.
The standard length is 12.5m, and the material is U71Mn or 50Mn.
As a professional rail manufacturer, Kingrail Parts can provide high-quality and low-price P43 rails.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperation with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, bevel cutting and welding services for quick installation.
Accessories: High-strength fishplates, rail anchors and rail clips, which can provide a complete rail solution.
Specifications
|
Item |
Specification |
Steel Grade |
Length |
|||
|
Head |
Height |
Base |
Web |
|||
|
43kg/m heavy steel rail |
70mm |
140mm |
114mm |
14.5mm |
50Mn, U71Mn, U75V |
12 meters |
|
12.5 meters |
||||||
|
25 meters |
||||||

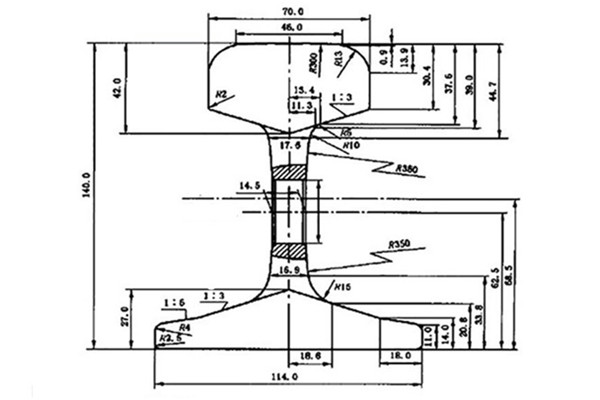

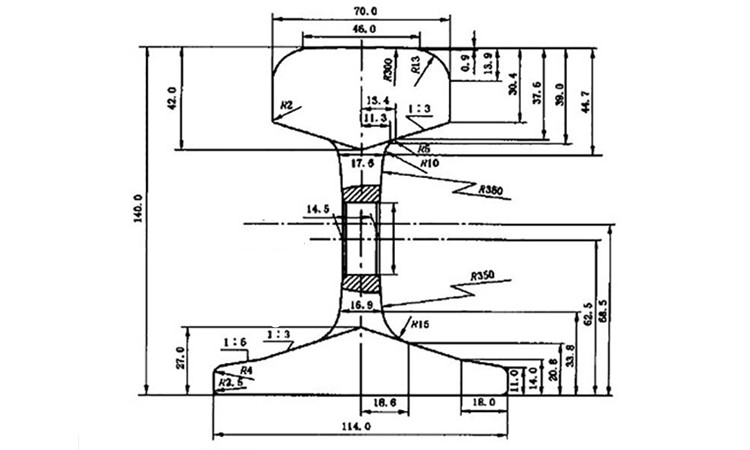

Drawings
Get a Free Quote
Please contact us for more information and quotes.
