P50 railway rail is suitable for locomotives and vehicles on low-speed national railway lines, and can also be used in subways or urban railways. The hardness is R260 and the length is 12.5 meters to 25 meters.
Kingrail Parts can provide various sizes of GB standard rails. Such as: P8 rail, P12 rail, P15 rail, P18 rail, P24 rail, P30 rail, P38 rail, P43 rail, P50 rail, etc.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict quality management specifications for rail products and have established reliable cooperation with customers in more than 30 countries.
Customized Options
Rail Processing: Pre-drilled bolt holes, bevel cutting and welding services for quick installation.
Accessories: High-strength fishplates, rail anchors and rail clips, which can provide a complete rail solution.
Specifications
|
Parameters |
|||
|
type |
weight (kg/m) |
material |
length (m) |
|
50kg |
51.514 |
50Mn/U71Mn |
12m/12.5m |
|
rail height (mm) |
bottom width (mm) |
head width (mm) |
web thickness (mm) |
|
152 |
132 |
70 |
15.5 |

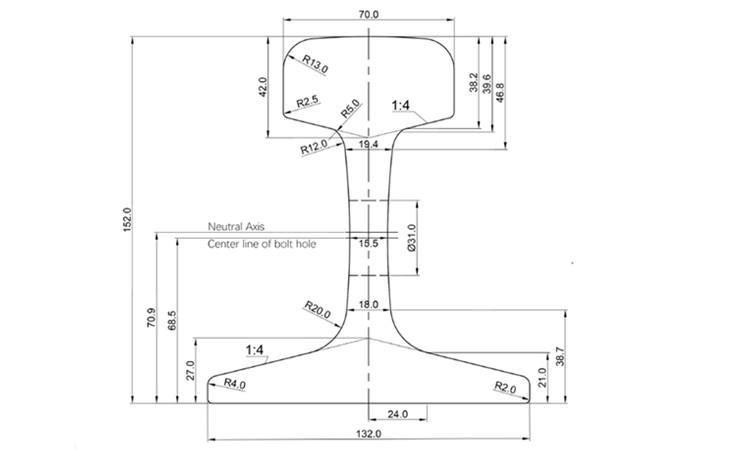

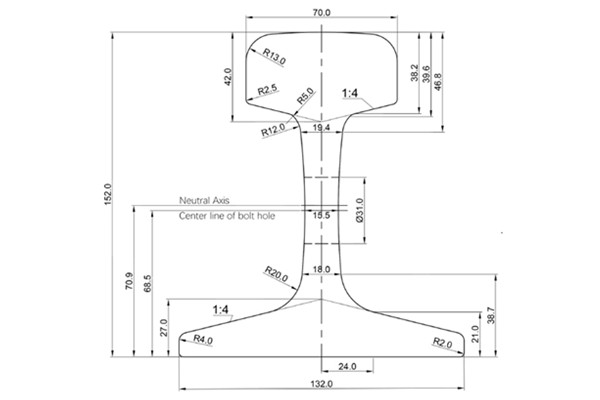

Drawings
Get a Free Quote
Please contact us for more information and a quote.
