P50 rails belong to heavy-duty rails. This type of rail is usually used in railway, trunk and tunnel construction, or as crane rails for tower cranes, bridge cranes, gantry cranes, etc. Heavy-duty rails are usually made of U71Mn or 50Mn steel, and the length ranges from 12.5 meters to 25 meters.
Kingrail Parts can provide GB standard rails in various sizes. Such as: P8 rail, P12 rail, P15 rail, P18 rail, P24 rail, P30 rail, P38 rail, P43 rail, P50 rail, etc.
Kingrail Parts is a trusted rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict quality management specifications for rail products and have established reliable cooperation with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, bevel cutting and welding services for quick installation.
Accessories: High-strength fishplates, rail anchors and rail clips for a complete rail solution.
Specifications
|
Size |
Specification(mm) |
Weight(kg/m) |
Steel Grade |
Length(m） |
|||
|
Height |
Bottom |
Head |
Web |
||||
|
GB 50kg |
152 |
132 |
70 |
15.5 |
51.514 |
U71Mn |
12.5-25 |

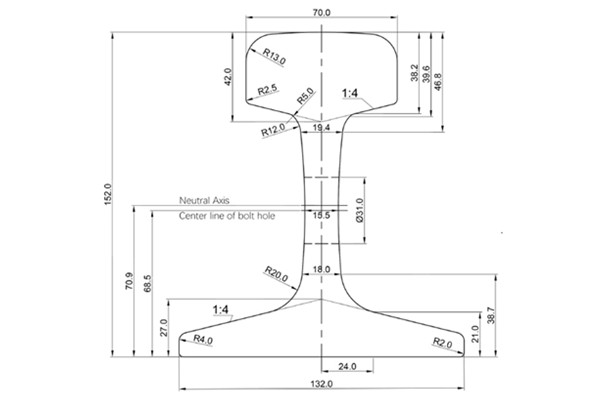

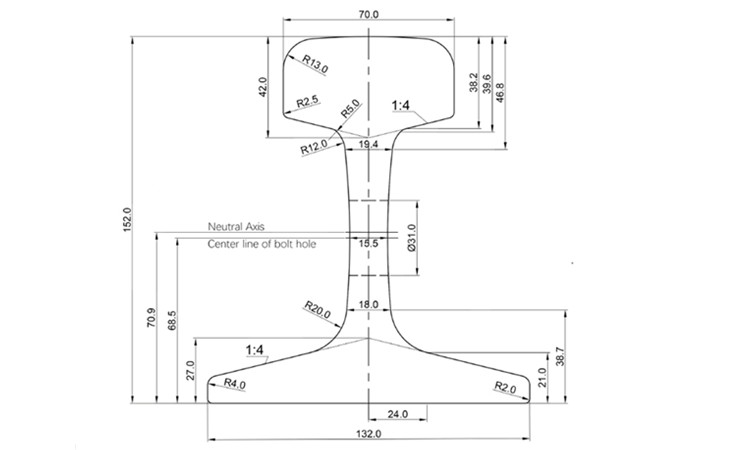

Drawings
Get a Free Quote
Please contact us for more information and quotes.
