The A55 crane rail is made in accordance with the DIN standard (German Standard Association), with a length of 12 meters. They are usually used in tram rails, crane rails, mining rail and other applications.
Kingrail Parts can provide high -quality and low -price A55 rails.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Material: 700/900A/1100
Weight: 31.8kg/m
Length: 10-12m
Standard: DIN536-1-1991
Dimensions:
| Profile | Standard | Dimensions mm | Section S | Mass m | |||
|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | ||
| A55 | DIN 536 | 65 | 150 | 55 | 31 | 40,50 | 31,80 |

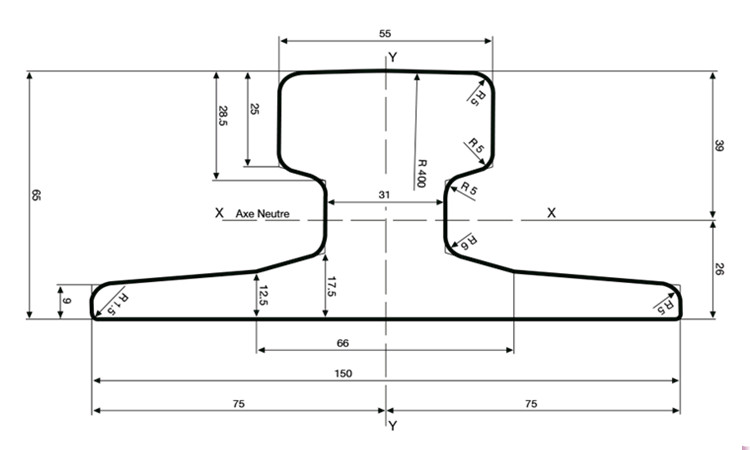

Drawing:
