Kingrail Parts is a company that specializes in providing light rails, heavy rails, crane rails and rail accessories.
Kingrail Parts supply A65 crane rail at high quality and competitive price. The A65 rail is a kind of heavy rail.
Kingrail Parts is a reliable rail product manufacturer with more than 20 years of experience, dedicated to providing materials and solutions for the rail industry. After years of development, we have established strict rail product quality management specifications and established reliable cooperative relationships with customers in more than 30 countries.
Customization Options
Rail Processing: Pre-drilled bolt holes, miter cuts, and welding services for rapid installation.
Accessories: High-strength fish plates, anti-creep anchors, and crane rail clamps available for complete track solutions.
Specification:
Model: A65 crane rail
Material: 700/900A/1100
Weight: 43.1kg/m
Level: 10-12M
Standard: DIN536-1-1991
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| A65 | 43.1 | 700/900A/1100 | 10-12 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 65 | 175 | 75 | 38 |

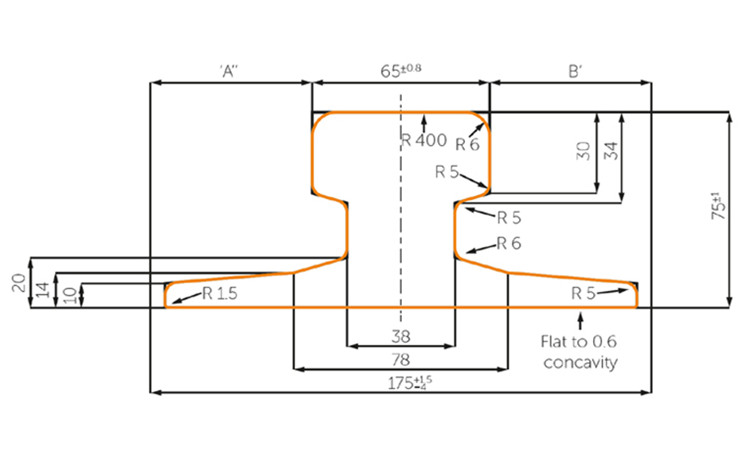

Drawing:
